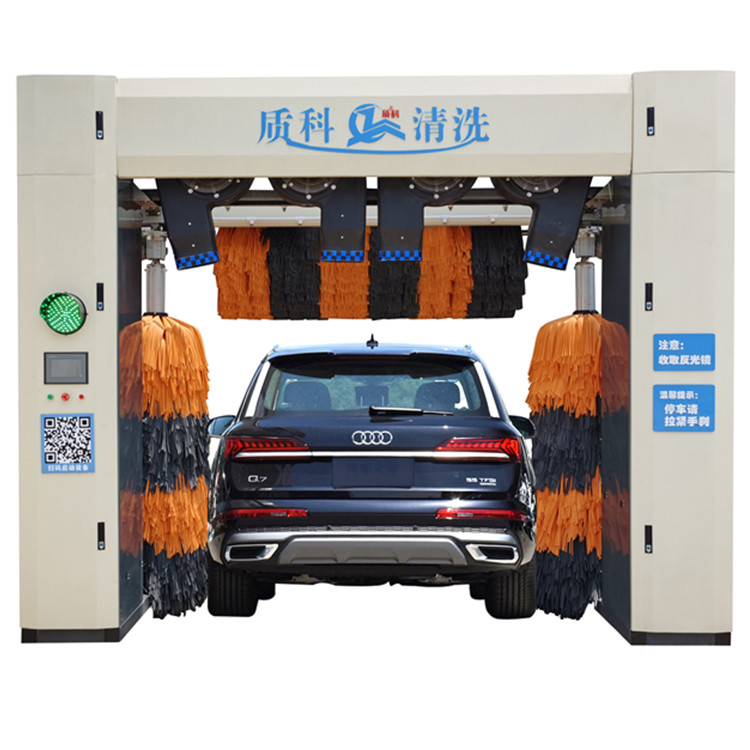

A five-brush automatic car wash machine is a rollover system designed to clean a stationary vehicle with soft rotating brushes. A typical configuration uses one top brush and four side brushes to follow the vehicle body, clean large surface areas and improve coverage around the front, rear and lower sides.

How the five-brush layout works

The top brush moves across the roof, windshield, rear window and horizontal surfaces. The side brushes clean the doors, fenders and vertical body panels. Depending on the configuration, the lower brushes can also improve cleaning around rocker panels and lower side areas.

Vehicle detection and brush positioning

Sensors detect the vehicle position and guide the movement of the gantry and brushes. The control system adjusts brush contact and travel according to the programmed wash cycle. Correct calibration is important because excessive contact increases wear, while insufficient contact can reduce cleaning performance.

Soft brush materials

Modern rollover machines commonly use soft foam or textile brush materials designed for repeated commercial operation. Clean brush material is essential. Operators should rinse the brushes regularly and remove sand or debris that could affect the vehicle surface.

Pre-wash and chemical application

Before brush cleaning, the system can apply water and detergent to soften dirt. A pre-soak stage helps reduce the load on the brushes and improves the final result. Chemical concentration should be adjusted for local water quality, weather and vehicle conditions.

Brush cleaning sequence

After the vehicle is correctly positioned, the gantry moves through a programmed sequence. The brushes rotate and follow the vehicle contour while water and shampoo support cleaning and lubrication. The exact sequence, travel speed and number of passes depend on the selected wash program.

Wheel and lower-body cleaning

Wheel brushes or high-pressure wheel sprays may be added to remove brake dust and road dirt. Underbody washing is another useful option for markets affected by mud, snow or road salt. Buyers should confirm whether these functions are standard or optional.

Rinsing, wax and drying

After brush cleaning, the machine rinses away detergent and loosened dirt. Optional wax or protective chemicals can create a premium wash package. Integrated air dryers reduce water remaining on the body, although drying results depend on blower configuration, vehicle shape and environmental conditions.

Advantages for commercial sites

A five-brush rollover system offers consistent programmed cleaning and can handle different vehicle sizes within its approved operating range. It is suitable for car wash centers, fuel stations, dealerships, service workshops and fleet facilities where operators need repeatable wash quality in a compact bay.

Daily maintenance priorities

Inspect and clean the brushes, nozzles, sensors, rails and drainage area every day. Check brush wear, chemical levels and unusual vibration. Follow the lubrication and electrical inspection schedule provided for the machine. Regular maintenance protects wash quality and reduces unexpected downtime.

What to confirm before purchasing

Confirm the installation dimensions, maximum vehicle size, power supply, water pressure, drainage capacity, expected hourly traffic and required wash programs. Ask about brush material, wheel wash options, drying configuration, payment integration, spare parts and technician training.

Zhike provides rollover, touchless and tunnel automatic car wash solutions for different site layouts and operating goals. Share your site drawing and expected traffic with our team to compare a five-brush rollover system with other automatic car wash configurations.
