L1-100（S11） Touchless Automatic Car Wash Machine
Before requesting a quotation
- Wash-bay dimensions and access route
- Vehicle types and expected washes per day
- Local voltage, frequency and water conditions
- Required wash process and optional functions
Quick Answer

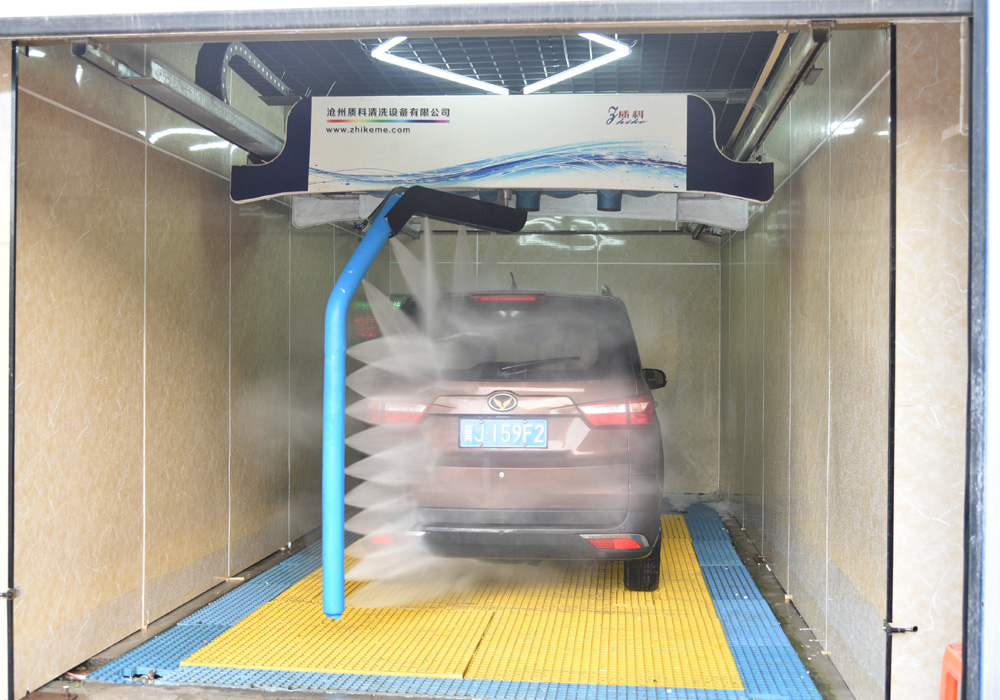

Zhike L1-100 (S11) is a nine-step touchless automatic car wash machine that adds LAVA waterfall foam, 360-degree foam coverage and flexible pressure control to the standard wash process. It is designed for commercial sites that want a stronger customer-facing wash experience while retaining four-fan air drying.
Best For
- Commercial car wash shops upgrading from a basic touchless system
- Service stations that want colorful waterfall foam as a visible wash feature
- Sites with a recommended bay of about 7 m × 3.5 m × 3.2 m
- Operators who need adjustable wash programs for different service packages
Key Parameters
| Item | L1-100 (S11) |
|---|---|
| Machine type | Touchless automatic car wash machine |
| Recommended installation space | About 7 m × 3.5 m × 3.2 m |
| Reference maximum vehicle size | About 6 m × 2.1 m × 2.1 m, subject to final layout |
| Water pump motor | 15 kW |
| Air drying | Four 5.5 kW fans |
| Reference rinse pressure | 80–100 kg/cm² |
| Reference water consumption | About 80 L/car |
| Reference chemical consumption | 20–60 ml/car, adjustable |
| Reference electricity consumption | 0.3–1 kWh/car |
| Typical wash time | 3–5 minutes/car |
Values are planning references, not fixed operating guarantees. Actual consumption and cycle time depend on the program, site utilities, vehicle condition and final configuration.
Nine-Step Wash Process

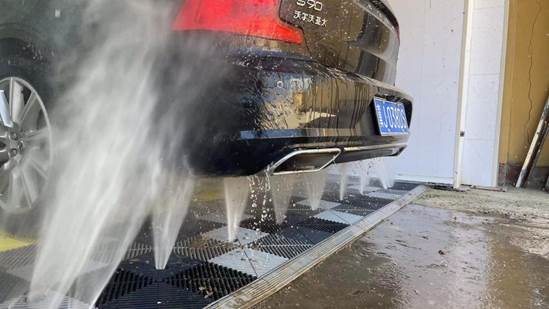

- Chassis and wheel rinsing
- LAVA waterfall foam
- High-pressure pre-wash
- 360-degree foam application

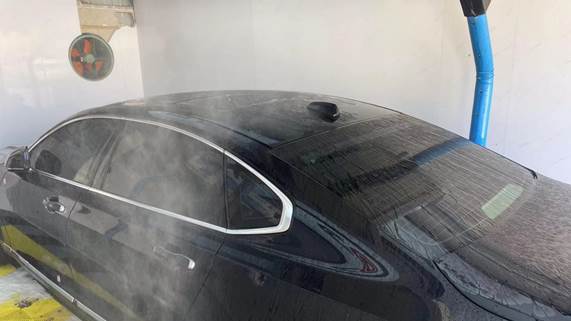

- High-pressure body wash
- Fine penetrating foam
- High-pressure rinse
- Water wax coating
- Four-fan air drying
What Makes L1-100 (S11) Different?
Compared with the compact L1-50 (S7), the L1-100 (S11) adds LAVA waterfall foam and a more complete nine-step program. It is a good fit when the wash experience and flexible service packages are important, while the larger L2-100 (S11PRO) is intended for buyers who prioritize a higher-power pump and six-fan drying.
Function Details and Buyer Benefits

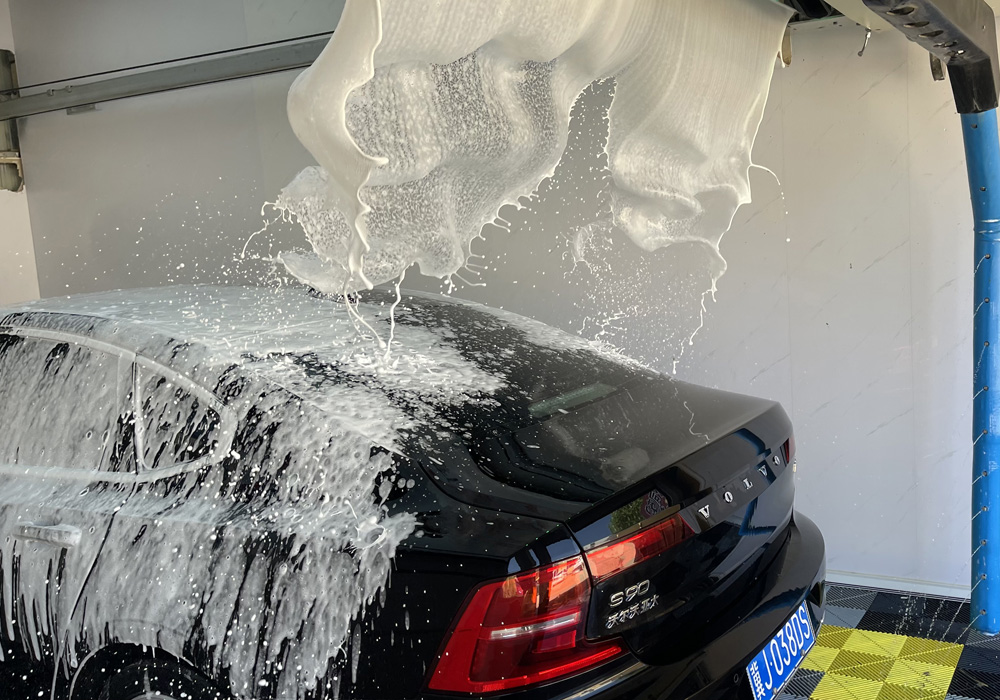

LAVA Waterfall Foam
The waterfall application creates a visible foam stage that can support a premium customer-facing wash package. The chemical and concentration are selected according to local water quality and the final program.

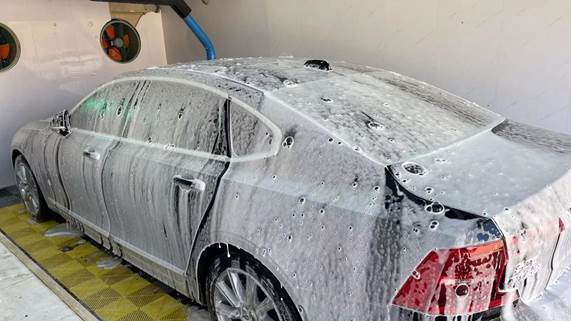

360-Degree Foam Application
Foam is applied around the approved passenger-vehicle envelope before the main high-pressure wash. This gives the chemical time and coverage within the configured process.

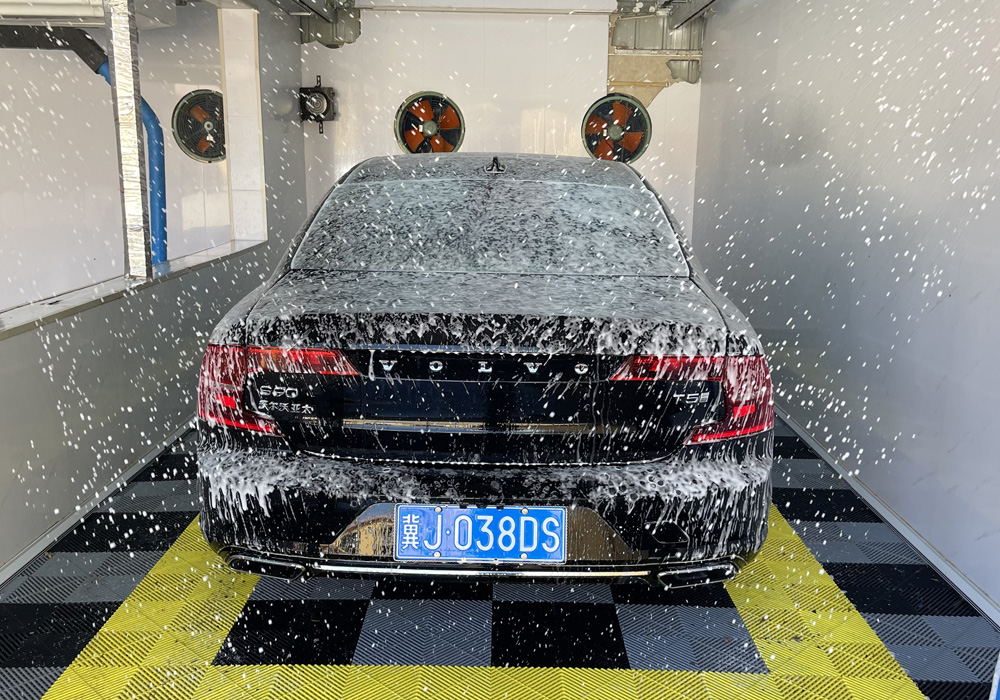

Four-Fan Air Drying
Four 5.5 kW fans complete the integrated wash-and-dry cycle. Drying results depend on vehicle shape, climate and cycle speed.
Configurable Wash Programs
Wash steps, chemical stages and pressure settings can be configured for different service packages. Enabled options are confirmed in the project configuration.

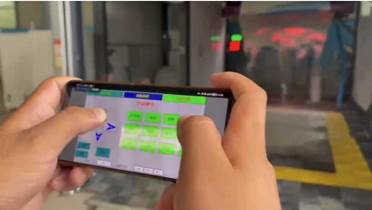

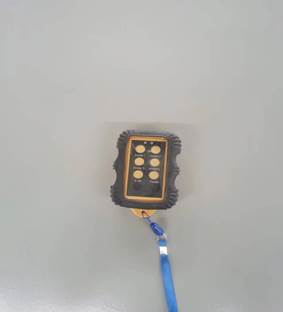

Control and Operating Support

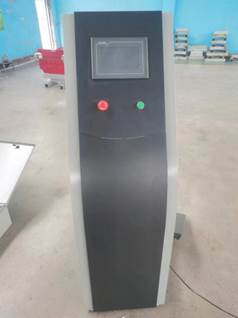

The wash sequence, chemical steps and pressure settings can be reviewed for the project configuration. Touch-screen operation, wash-count reporting, fault prompts and remote support functions help operators manage daily use. Optional unattended interfaces should be confirmed for the destination market before ordering.
Related Model Comparison
Compare this model with the other main touchless configurations in S11 vs S11PRO vs S11S vs TS.
FAQ
What is the main difference between S11 and S11PRO?
L1-100 (S11) uses a 15 kW pump and four fans. L2-100 (S11PRO) uses an 18.5 kW pump and six fans and requires a larger recommended installation space.
Can the machine be configured for local voltage?
Yes. Send the destination voltage and frequency before quotation so the electrical configuration can be checked.
What information is needed for a recommendation?
Please provide the country, bay dimensions, maximum vehicle size, expected daily volume, voltage, water supply, drainage and local climate.
