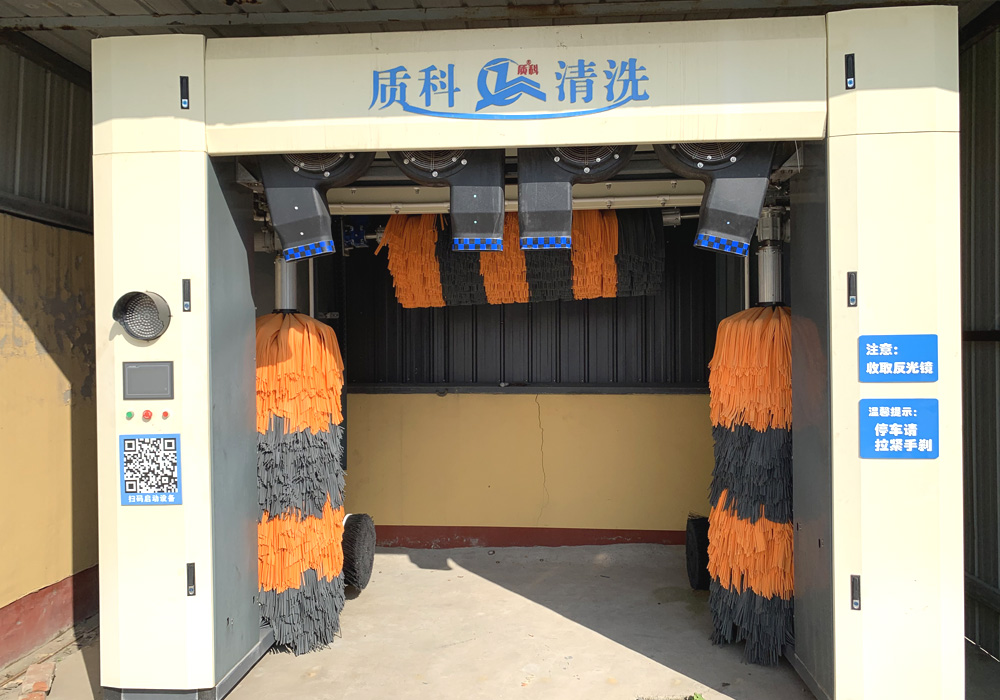

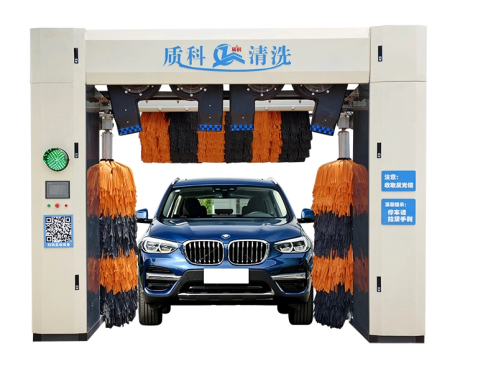

SY-T5A
Five brush wash | ||
Three-phase four-wire power supply | ||
Installation length 10 m wide 4 m high 3.2 m | ||
Three years warranty, life-long maintenance | ||
Product Configuration Table | ||

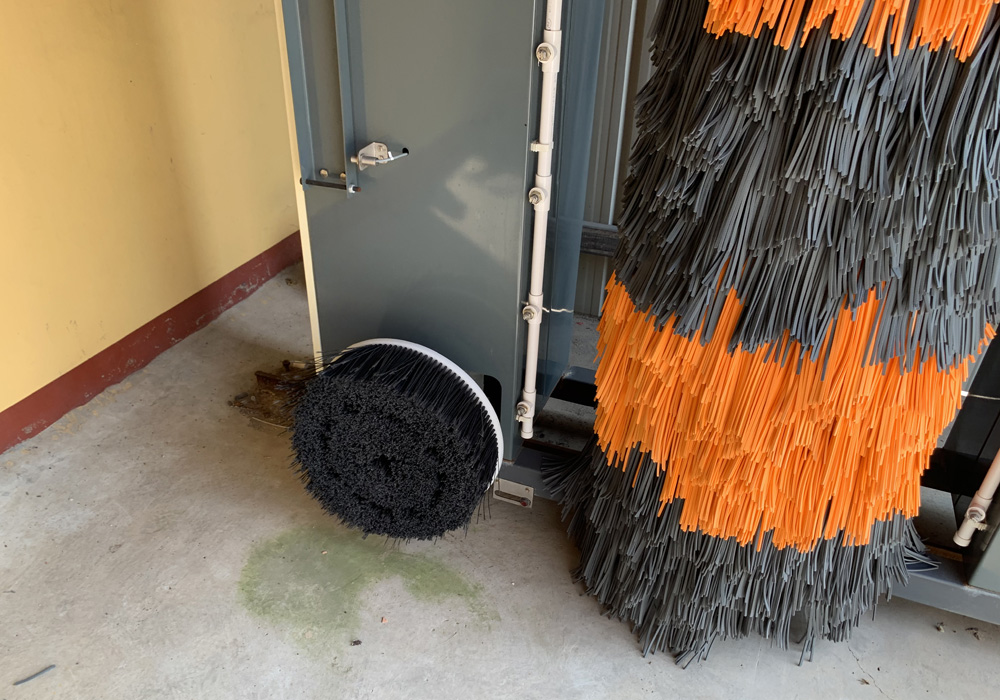

Stainless steel body | Wheel flushing | |
Intelligent Liquid Matching System | Intelligent remote control startup | |
Self Parking System | Frequency converter | Delta |
Function of spraying car wash | Touchscreen | Kunlun general state |
LED Tips | Drive motor | Asynchronous motors |
Car wash statistics | ||
Fault self-checking function | ||
Drainage anti-freezing system | ||
Leakage protection system | ||
Auto standby one key start | ||
Security Alarm System | ||
24 hours unattended | ||
Voice Hiring System | ||
WeChat Alipay payment system | ||
Technical parameters | ||
Pump | 2.2 KW | |
Installation dimensions | 10m*4m*3.2m | |
Power requirements | 380V/16KW | |

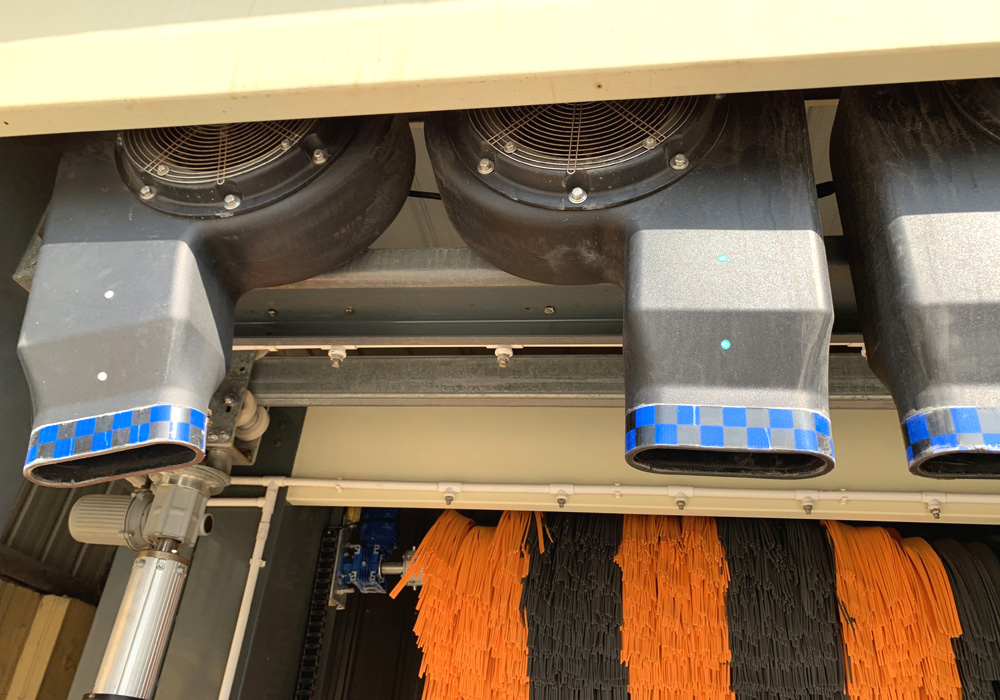

Air drying power | 16KW | |
Whole vehicle flushing water consumption | 50L-80L/ vehicles | |
Car wash height | 2m | |
Maximum car wash width | 2300mm | |
Maximum car wash length | 5.9m | |
Processor | PLC Delta | |
Car wash time | 2-4 minutes | |
Electricity consumption | 0.5 degrees per vehicle | |
Length, width and height | 2*3.6*3 meters | |
weight | 1800kg | |
What needs to be prepared | ||
Water bucket | 1 cubic meter | |
Welding machine | 1 unit | |
Forklift | 1 unit | |
Configurations:
 |  |
Parts List
Name | Origin | Brand | Quantity |
Frequency converter | Taiwan | Delta | 1 |
PLC | Taiwan | Delta | 1 |
7 inch touch screen | Taiwan | Delta | 1 |
LED screen | Shenzhen | customized | 1 |
9A AC contactor | France | Schneider | 12 |
32A AC contactor | France | Schneider | 2 |
1 P air switch | France | Schneider | 2 |
3 P air switch | France | Schneider | 1 |
100Wswitch | France | Schneider | 1 |
Intermediate relay | France | Schneider | 13 |
thermal relay | France | Schneider | 9 |
0.37kw AC motor | Zhejiang | Defan | 10 |
Worm reducer | Zhejiang | Defan | 10 |
Proximity switch | Italy | Modi | 14 |
Photoelectric switch | Beijing | Biduk | 4 |
Metering pump | Beijing | Greywitt | 2 |
Solenoid valve | Taiwan | Airtac | 1 |
Solenoid valve | Taiwan | Airtac | 2 |
Bearing | stainless steel | 24 | |
Nozzle | Shanghai | customized | 29 |
Water pump | Shanghai | Renmin | 1 |
Fan | Guangzhou | William | 4 |
Synchronous belt | Foshan | customized | 3meter |
Synchronous wheel | Foshan | customized | 2 |
Remote control | Tianjin | customized | 1 |
track | Wuxi | customized | 4 |
