L4-100（T5S） Touchless Car Wash with Wheel Brushes
Before requesting a quotation
- Wash-bay dimensions and access route
- Vehicle types and expected washes per day
- Local voltage, frequency and water conditions
- Required wash process and optional functions
Quick Answer
Zhike L4-100 (T5S) combines touchless body washing with independent wheel brushes. It adds high-pressure swing flushing, automatic height adjustment and six-fan air drying for commercial sites that want stronger wheel and lower-body cleaning.
Best For
- Commercial wash sites where wheel appearance is an important selling point
- Projects serving sedans, SUVs, MPVs, vans and taxis
- Operators who need a larger bay and six-fan drying
- Buyers comparing touchless body washing with targeted wheel contact
Key Parameters
| Item | L4-100 (T5S) |
|---|---|
| Machine type | Touchless body wash with independent wheel brushes |
| Recommended installation space | About 10 m × 4 m × 3.2 m |
| Reference maximum vehicle size | About 6 m × 2.3 m × 2.3 m, subject to final layout |
| Water pump motor | 18.5 kW |
| Air drying | Six 5.5 kW fans |
| Reference rinse pressure | 80–150 kg/cm² |
| Reference water consumption | About 80 L/car |
| Reference chemical consumption | 20–60 ml/car, adjustable |
| Reference electricity consumption | 0.3–1 kWh/car |
| Typical wash time | 3–5 minutes/car |
The recommended site size includes operating clearance. Minimum civil dimensions and utility layout must be confirmed from the final installation drawing. Consumption varies by wash program and site conditions.
Seven-Step Wash Process

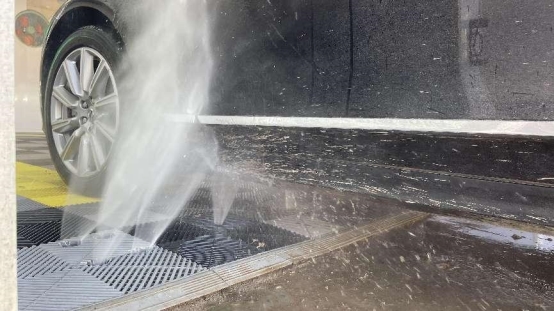

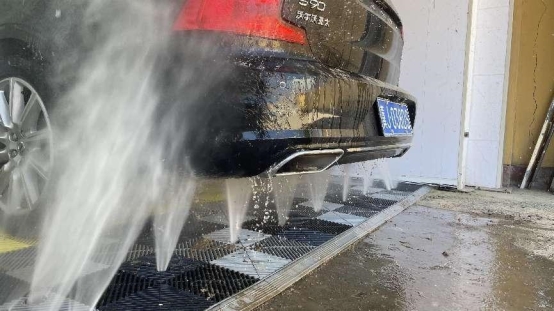

- Chassis and wheel pre-rinsing
- Wheel brush cleaning
- Shampoo application
- High-pressure swing flushing
- Fine penetrating foam
- Water wax coating
- Six-fan air drying
Wheel Cleaning Advantage
The independent wheel brushes focus on wheels and tire edges while the main body remains a touchless wash. This configuration is useful for sites where customers expect more visible cleaning around the lower vehicle area.
Function Details and Buyer Benefits

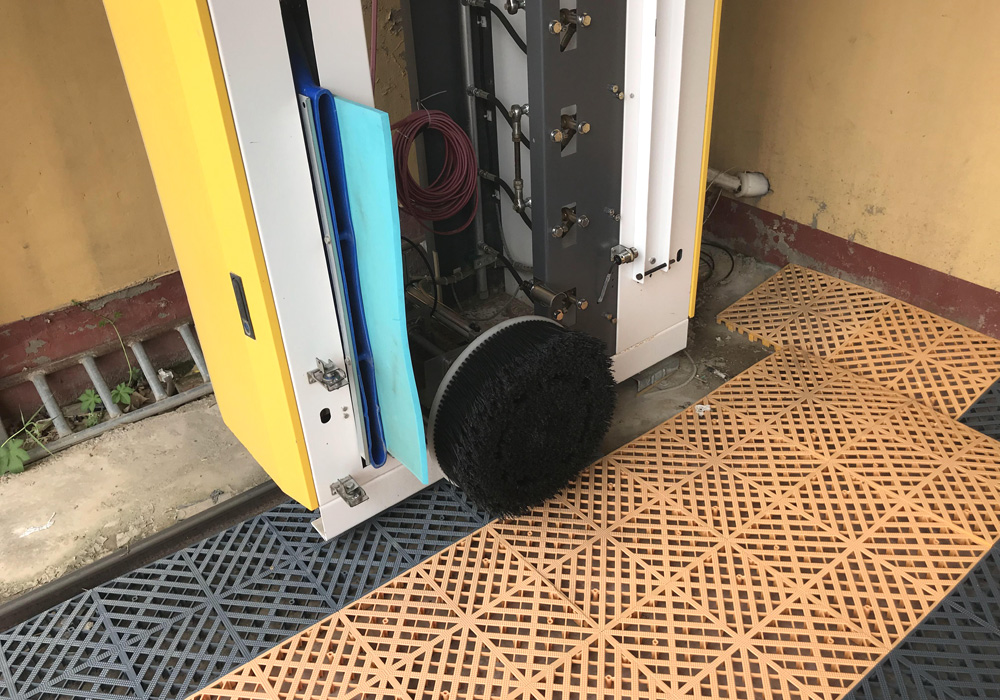

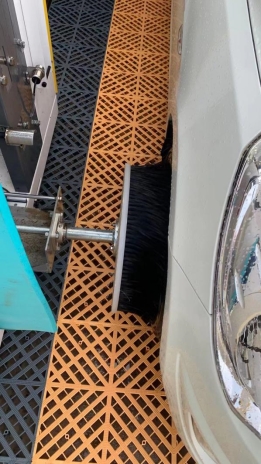

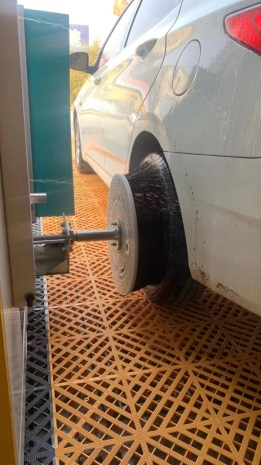

Independent Wheel Brushes
The wheel brushes target the wheel area separately from the touchless body wash. This helps operators sell a more visible lower-area cleaning step without using brushes across the vehicle body.

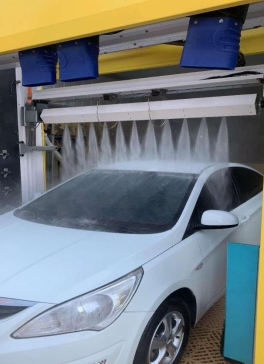

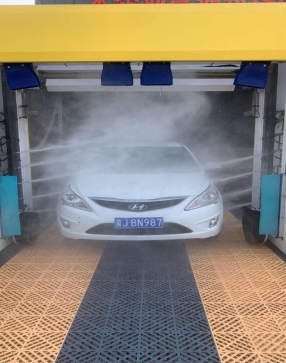

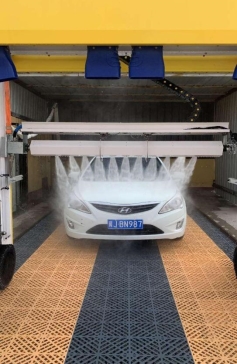

High-Pressure Swing Flushing
The moving high-pressure assembly improves coverage around the approved vehicle envelope. Pressure and movement settings are commissioned for the selected wash program and site utilities.
Automatic Height Adjustment
Height-related control supports movement around different approved passenger vehicles. The maximum vehicle height must still be checked before ordering.

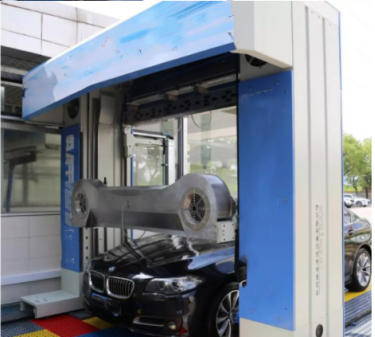

Six-Fan Air Drying
Six 5.5 kW fans provide integrated drying. Actual drying depends on vehicle shape, ambient conditions, fan movement and program speed.

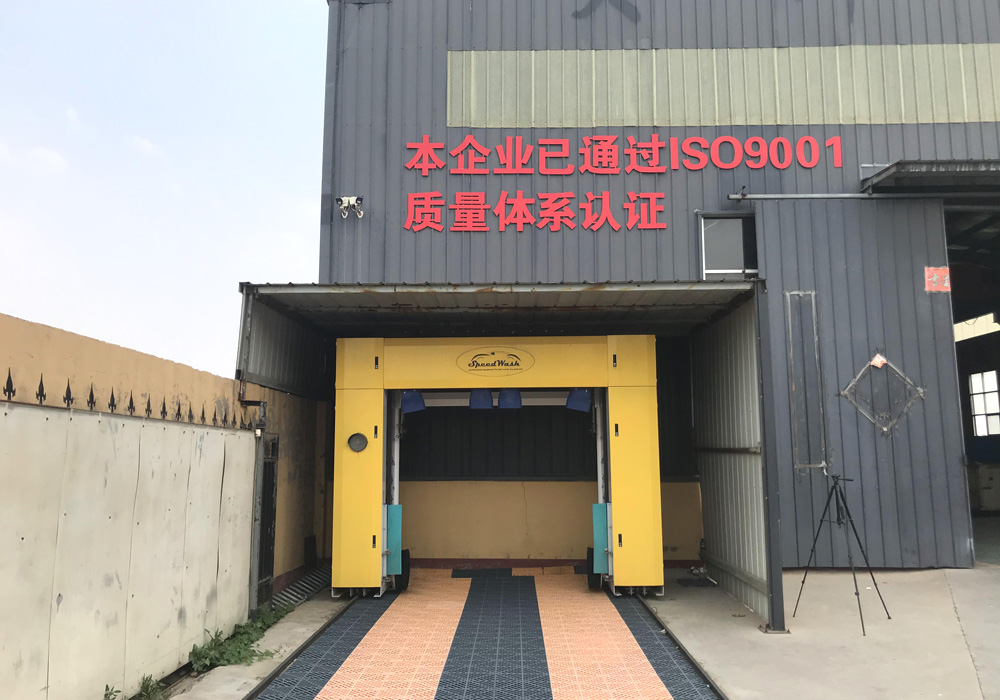

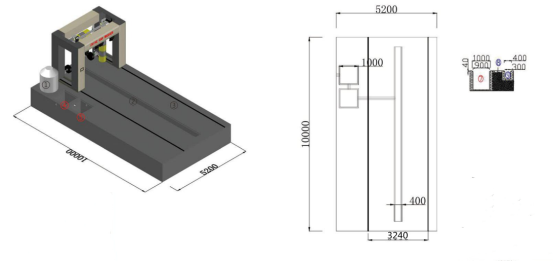

Installation Planning
Before selecting T5S, confirm the usable bay, entrance and exit clearance, drainage direction, equipment-room position, voltage, water supply and the largest expected vehicle. Zhike can then provide the applicable layout and configuration rather than relying on one general dimension.
Related Buyer Guide
Comparing wheel-cleaning methods? Read T5S vs T7S: Wheel Brush or High Pressure? before choosing a configuration.
FAQ
Do the wheel brushes touch the vehicle body?
No. They are intended for the wheel area. The main body wash remains touchless.
Why does T5S require a larger site?
The wheel-cleaning mechanism, equipment movement and operating clearance require more space than the compact touchless models.
Can the configuration be adapted to local utilities?
Voltage, frequency, climate measures and optional control interfaces can be reviewed for the project. Final functions are confirmed in the quotation and installation drawing.
