L3-100Pro（TS） Profile-Sensing Touchless Car Wash Machine
Before requesting a quotation
- Wash-bay dimensions and access route
- Vehicle types and expected washes per day
- Local voltage, frequency and water conditions
- Required wash process and optional functions
Quick Answer
Zhike L3-100Pro (TS) is a profile-sensing touchless automatic car wash machine with automatic height adjustment, an 18.5 kW pump, four-fan air drying and a configurable wash sequence. It is intended for commercial projects that want the spray system to follow different vehicle profiles while providing a visible foam and high-pressure wash experience.
Best For
- Commercial touchless car wash projects serving varied passenger-vehicle profiles
- Sites that prioritize automatic height sensing and profile washing
- Operators who want LAVA waterfall foam and flexible wash programs
- Projects with a recommended installation space of about 8 m × 3.8 m × 3.2 m
Key Parameters
| Item | L3-100Pro (TS) |
|---|---|
| Machine type | Profile-sensing touchless automatic car wash machine |
| Recommended installation space | About 8 m × 3.8 m × 3.2 m |
| Reference maximum vehicle size | About 6 m × 2.4 m × 2.0 m, subject to final layout |
| Water pump motor | 18.5 kW |
| Air drying | Four 5.5 kW fans |
| Reference rinse pressure | 80–150 kg/cm² |
| Reference water consumption | About 80 L/car under a referenced standard program |
| Reference chemical consumption | 40–60 ml/car, adjustable |
| Reference electricity consumption | About 0.5–1 kWh/car |
| Typical wash time | About 3–8 minutes/car, depending on the selected program |
Reference values vary with vehicle condition, wash sequence, site utilities and final configuration. Confirm civil dimensions and functions in the project quotation and installation drawing.
Profile-Sensing Wash Control
The TS configuration uses height sensing and profile-following control to support spray movement around different vehicle shapes. This helps the operator configure the cleaning distance and wash sequence for the approved passenger-vehicle range.
Main Wash Functions
- Chassis and wheel-area rinsing
- LAVA waterfall foam
- Fine penetrating foam
- High-pressure profile washing and rinsing
- Water wax coating
- Four-fan air drying
- Automatic height adjustment
- Configurable wash modes and operating reports
Function Details and Buyer Benefits
Profile-Sensing Movement
Height and profile information support spray movement around approved passenger vehicles. This helps the wash process respond to different vehicle shapes while keeping the permitted clearance under project control.
18.5 kW High-Pressure Pump
The pump supports the configured touchless pressure and wash program. Final results depend on chemical selection, utilities, vehicle condition and commissioning.

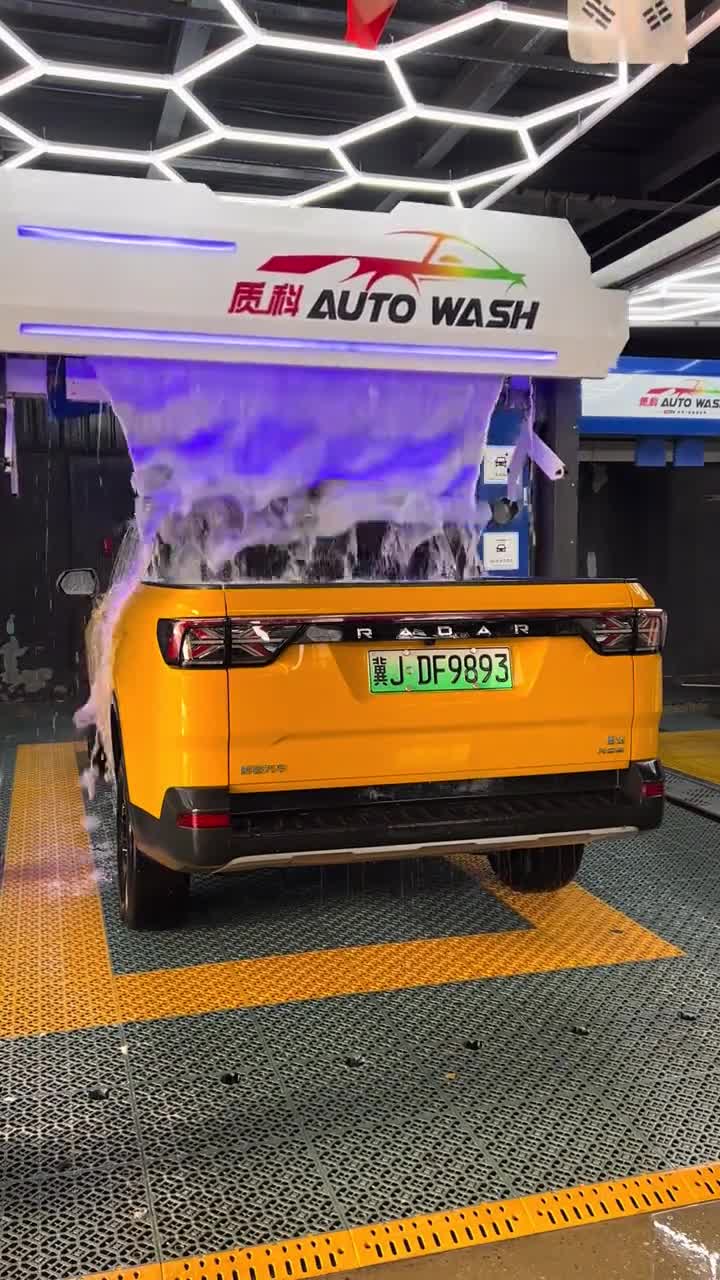

LAVA Waterfall and Fine Foam
Separate foam stages allow the operator to build visually distinct wash packages. Chemical compatibility and concentration are confirmed for local water and climate conditions.
Four-Fan Air Drying
Four 5.5 kW fans provide integrated drying after washing. Drying performance varies with vehicle shape, ambient conditions and the selected program.
Distinctive Floor-Mat Cleaning Option
The TS material includes a dedicated floor-mat cleaning function. Its exact arrangement, operating method and inclusion in the supplied configuration should be confirmed before quotation.
TS or S11S?
L3-100Pro (TS) focuses on automatic height sensing and profile-following operation in a larger recommended bay. L3-100 (S11S) focuses on 3D positioning and width-sensing spray movement. The right choice depends on the site, vehicle mix and preferred wash process.
Related Model Comparison
Compare this model with the other main touchless configurations in S11 vs S11PRO vs S11S vs TS.
FAQ
Does TS use brushes on the vehicle body?
No. The main body wash uses chemical application and high-pressure water without body brushes.
Can the wash sequence be adjusted?
The control system supports configurable wash modes and process settings. The enabled steps depend on the final project configuration.
What should I send before requesting a quotation?
Send the country, bay dimensions, largest vehicle size, expected wash volume, voltage, water supply, drainage and preferred wash functions.
