SY-S11 Pro
Model | SY-S11S |
floor area (mm*mm) | 7500*3500*3300 |
Size(L*W*H) | 3000*1300*1000mm |
Car body(W*H) | 5900*2200*2050mm(customizable) |
Electricity | 380V/ 50Hz(customizable) |
Main motor power | 16kw(customizable) |
Water consumption | 90-150L/car |
Water pressure | 100 bar(customizable) |
Speed | 2 0~30sets/h |
Rail way | 7m |
High pressure water system |
Configurations:
1. Unique suspension system, no resistance rail.
2.Automatic water spraying and waxing system;
3.Automatic speed variable moving system;
4. Controlled by intellectualize computer;
5. Intelligent chemical mixing system.
6. Unique embedded automatic quick-drying system.
7.Car position indication system;
8. Self-check system failure.
9. One-button antifreeze system
10. Digital voice security alarm system.
Technical parameters | Control system | ||
Installation dimensions | 7.5m*3.5m*3.2m | PLC | Taida Taiwan |
Track length | 7.5m | The inverter | Taida Taiwan |
Maximum wash size | 5.9*2.2*2.05m(customizable) | The sensor | Bi DUK |
The water pressure | 100kg(customizable) | ||
The power supply | 380v/50Hz(customizable) | ||
The host power | 16kw(customizable) | ||
Comprehensive configuration | The transmission system | ||
Chassis wash | YES | Driving longitudinally | Belt drive |
Diy maintenance | Free maintenance | Horizontal drive | NO |
Numerical control system | YES | The drive motor | Asynchronous motor |
Credit card system | optional | Detection system | ultrasonic |
Bubble film color | YES | washing speed | 20-30 cars/hour |
Wash the car counting | YES | water consumption | 100-150L/car |
Breakdown self check | YES | Standard car wash | 90L/car |
Function of water wax | YES | Voice reminder function | Yes |
LED display | YES | Car wash model | 4 |
fan | FOUR(5.5kw) |
Standard Function

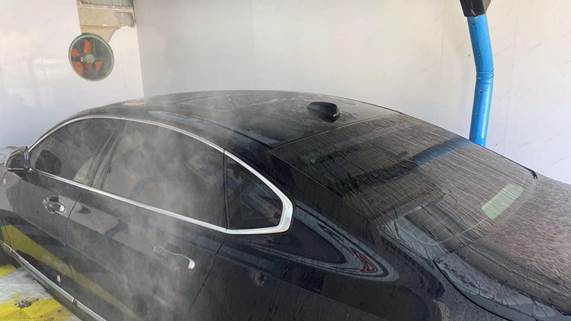

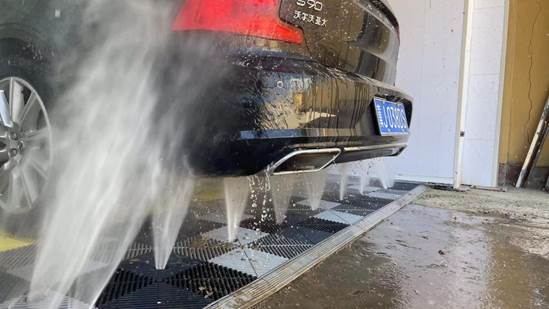

1. High pressure pre-wash for under chassis and wheels.
Equipped with a unique chassis and fan hub flush function, 100-150bar high pressure water can effectively remove dirt on chassis, body sides and wheels.
2.Intelligent 360 plus-degree rotating arm, using high-precision batching technology to spray various washing chemicals.
100% accurate measurement with adjustable ratio. only 20~50ml pre-soak comsumption for washing one car through high precision chemical mixing system, save material and cost efficiently.
3.Vehicle width vehicle system, which can sense the width of the vehicle and automatically adjust the cleaning distance
S11S is equipped with 5 ultrasonic sensors, which can measure the width of the car, we can freely set the cleaning distance, and the car washing machine can automatically adjust
Complete 360° rotating within 28 seconds, water saving 50%, electricity saving 60%, automatic detect the length and width of the vehicle, up to 100-150bar high pressure water can easily remove the dirt.

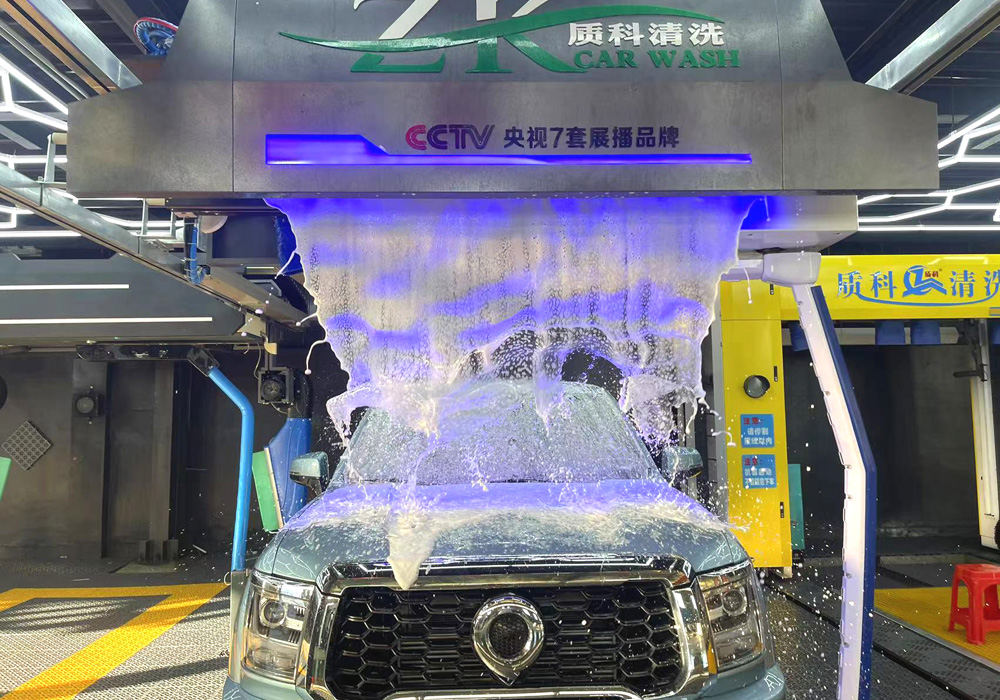

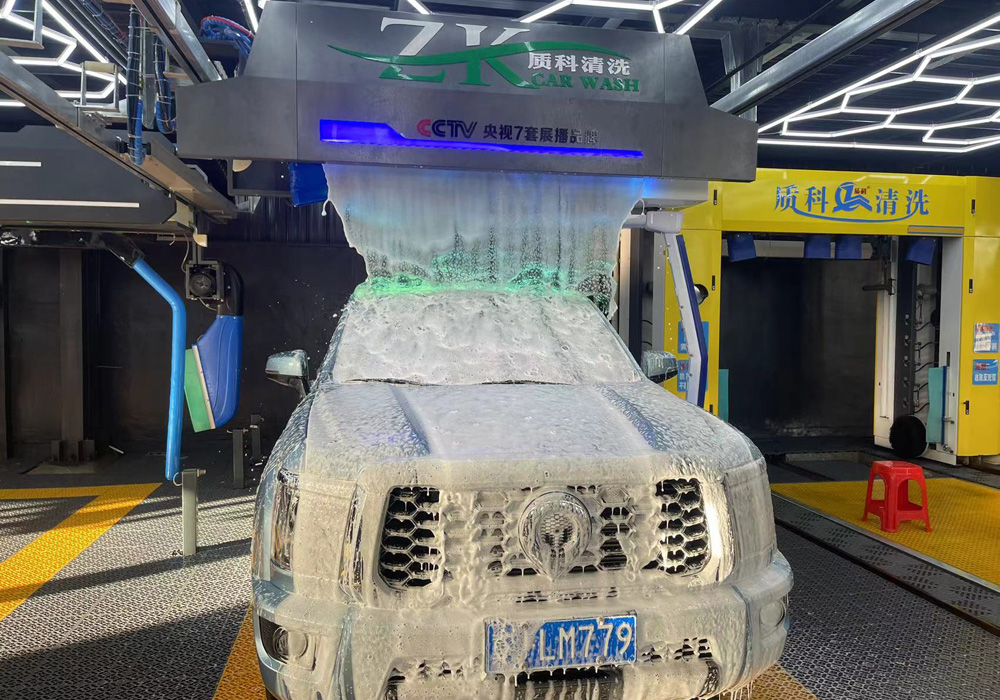

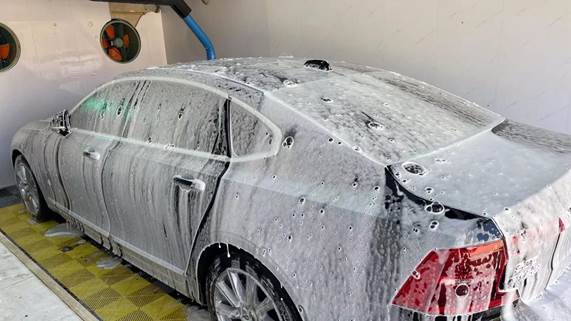

4.Magic polish shampoo
Thick foam makes cleaning maintenance component fuller contact with dirt, thereby improving the efficiency of decontamination, making the paint colors more moist, bright lights.
S11S car washer special formulation car wash fluid, effective daily cleaning car body dirt and non-corrosive car paint, wheels, tires, window glass
5.Soft water with crystal wax coat
Soft water can make magic crystal coating color shampoo and wax completely adsorbed body surface, forming a multi-layered interaction strength protective film, car paint become more glorious and beautiful with durable paint protection.
Crystal coating of wax can be generated in the paint surface layer polymer, the water softener fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.

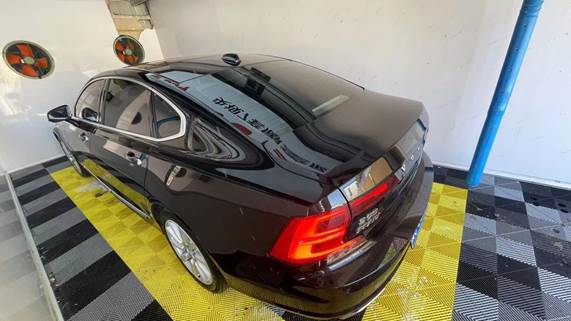

6.Unique embedded fast drying system.
S11S is equipped with four 4kw built-in air dryers, which control the air flow through four cylindrical outlets to optimize the wind speed characteristics. When the wind reaches the car body, it maximizes. In fact, high-speed air flow is the best drying solution.
7. LED display and voice broadcast
S11S is equipped with LED display function, which reminds customers of the running status of the car washing machine and reminds customers of matters needing attention.

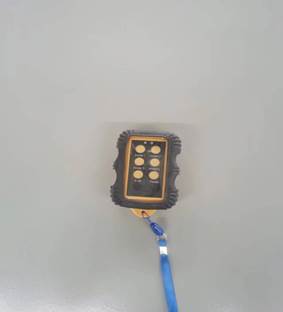

8.Multifunction remote
The S11S is equipped with a multi-function remote control
There are 4 mode options on the remote control, which can be used with the 4 built-in car washing machine modes of the car washing machine. Different processes can be set for each mode, corresponding to different charging and cleaning charging standards

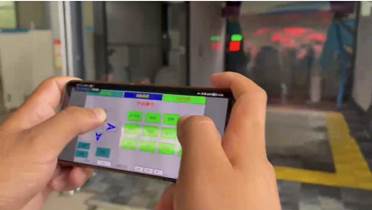

9.Mobile APP remote control
S11S can be operated through mobile APP
You can check the water balance, foam balance, water wax balance through your mobile phone, you can remotely check the running status of the car washing machine, and control the operation of the car washing machine
Optional function

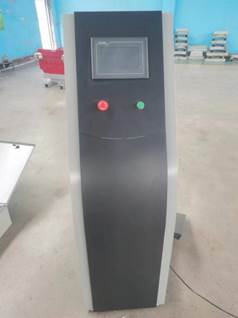

1. Additional independent control cabinet(USD:300)
2. Technology of removing insect corpses(USD:500)
3.Energy saving system and ISPC energy saving system(USD:800)
Name | Origin | Brand | Quantity | Photos | Remarks |
Frequency converter | Taiwan | Delta | 1 | ||
PLC | Taiwan | Delta | 1 | ||
10-inch touchscreen | Shenzhen | customized | 1 | ||
LED display | Shenzhen | customized | 1 | ||
Ultrasound | Germany | B+F | 5 | ||
65A AC contactor | Zhejiang | Delicacy | 2 | ||
9A AC contactor | Zhejiang | Delicacy | 2 | ||
3P air switch | Zhejiang | Delicacy | 4 | ||
1P air switch | Zhejiang | Delicacy | 4 | ||
100W switching power supply | Zhejiang | Delicacy | 2 | ||
AC intermediate relay | Zhejiang | Delicacy | 8 | ||
DC intermediate relay | Zhejiang | Delicacy | 6 | ||
0.37 kw AC motor | Guangdong | Jin Rui | 1 | ||
0.37 kw AC motor | Guangdong | Jin Rui | 1 | ||
1:20 Gear reducer | Hangzhou | Yiding | 1 | ||
1:100 worm gear reducer | Hangzhou | Yiding | 1 | ||
servo motor | Taiwan | Delta | 2 | ||
Proximity switch | Italy | Modi | 7 | ||
Photoelectric switch | Beijing | Biduk | 3 | ||
15 kw Motor | Shanghai | Chu Feng | 1 | ||
5.5 KW Motor | Guangdong | Sheng Hua | 4 | ||
Metering pumps | Beijing | Gretel | 4 | ||
Foam pump | Taizhou | Leo | 1 | ||
Solenoid valve |
Zhejiang | Shen Chi |
4 | ||
Solenoid valve |
Zhejiang | Shen Chi |
1 | ||
Solenoid valve | Zhejiang | Shen Chi | 6 | ||
Rotary joint |
Shanghai | customized | 1 | ||
4-high pressure one-way valve | Shanghai | customized | 1 | ||
One inch high pressure single valve | Shanghai | customized | 1 | ||
One inch one-way valve | Shanghai | customized | 1 | ||
Bearing | Shanghai | Ren Ben | 1 | ||
High pressure tube | Hangzhou | Leien | |||
Bearing | Shanghai | Ren Ben | 4 | ||
Pneumatic valves | Zhejiang | Ou Kong | 1 | ||
Nozzle | Shanghai | customized | 29 | ||
Pulley | Shanghai | customized | 24 | ||
Trailer chain | Hebei | customized | 4 m | ||
Pump | Germany | Pinfu | 1 | ||
Stop limiter | Cangzhou | customized | 10 | ||
LED lights | Cangzhou | Yan Cai | 2 | ||
Water wax spray rod | Wuxi | customized | 1 | ||
Fan | Guangzhou | William | 4 | ||
Synchronous belt | Foshan | customized | 8 m | ||
Synchronous wheel | Foshan | customized | 2 | ||
Tropical | Linyi | Huan Rui | 50 m | ||
Voice Prompt | Shenzhen | ustomized | 1 | ||
Remote control | Tianjin | customized | 1 | ||
Galvanized square tube | Tianjin | customized | 19 | ||
