Machine Size :

9500*3800*3100MM (L*W*H)

Washing Car Max Size:

5500*2100*2100MM (L*W*H)

operation

touch screen

Wash for

Cars, mini bus, pickup,SUV,MVP

Washing Speed:

1-2 minutes/car

Water Consumption:

120 L/car

Power Consumption:

0.35 kwh/car(0.7kwh/car with fans)

Power Supply:

380 V/50 /60HZ, 3 phases

Equipment Moving Speed:

6 m/min

Install Size:

11700*4500*3500MM (L*W*H)

Foundation Size:

11700*4500*3500MM (L*W*H)

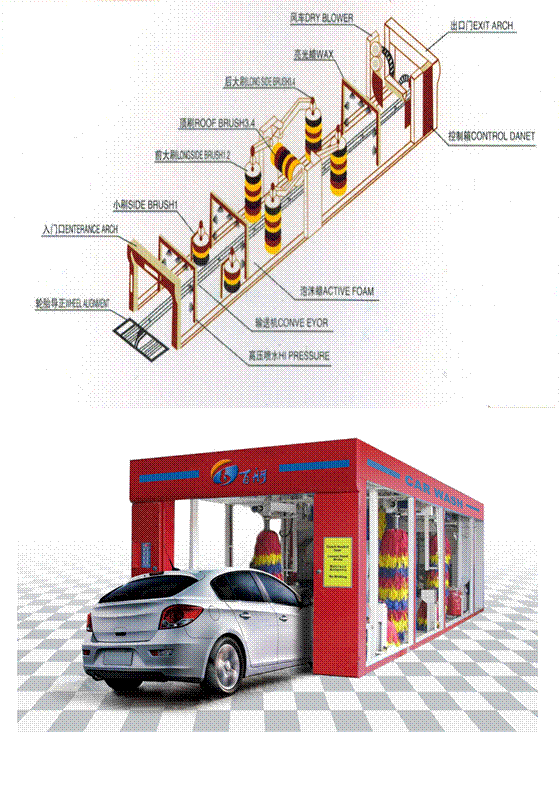

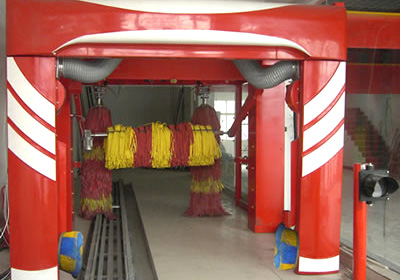

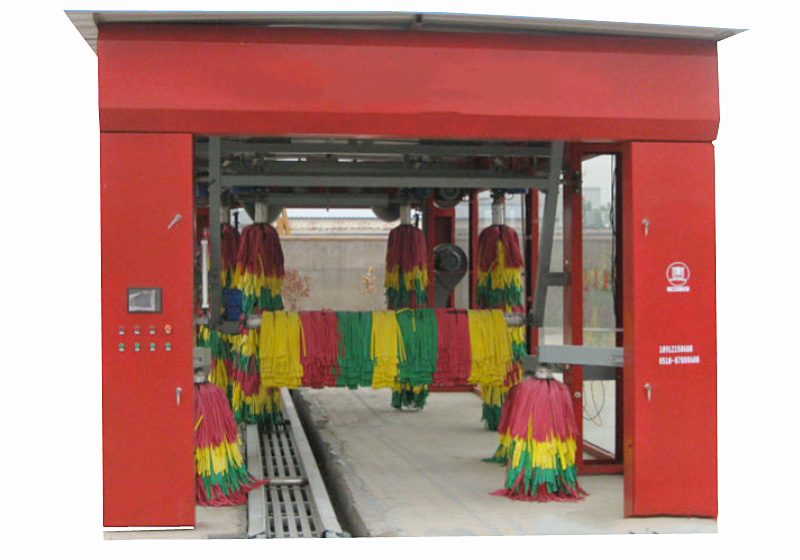

Brush:

1 top brush

4 long side brushes

2 side brushes

Contouring dryer

Two stationary fans and two moving fans（The fan power22KW）

Total Power:

36KW

Water supply

DN25mm/Water flow rate≥80L/min

Air pressure

0.6-0.9Mpa/Airflow rate≥0.1m³/min

Shampoo consumption

5ml/Car

Water wax consumption

5ml/Car

Size

Machine size

9500*3800*3100mm

Car Max Size

5500*2100*2100MM

Cost    consumption

Total power

36kw

Maximum  operating power

28kw

Various  components power

Top brush 0.55KW*1

Side brush 0.55KW*4

Small brush 0.37KW*2

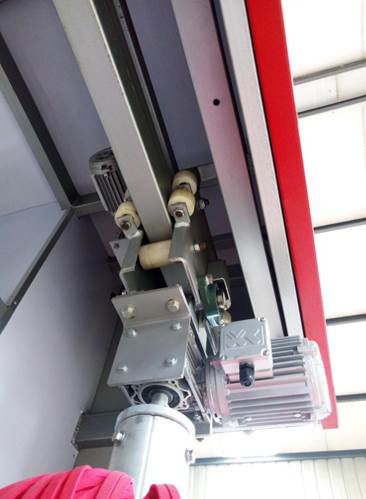

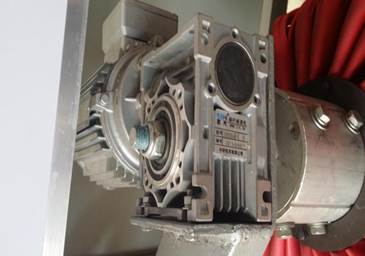

Conveyor

 Traveling 1.5KW*1

Water pump 3KW*1

suction pump 1.1kw*2

foam pump 0.4kw*1

water wax pump 0.4KW*1

Air compressor 3kw*1

Dryer 5.5KW*4

Water consumption

125L

Wash

Washable car

Car, jeep, coach below 9seats

Liquid using

shampoo

wax

Washing time

50sets/hour
