SY-S7

ModelSY-S7floor area (mm*mm)6500*3500*3300Size(L*W*H)3100*1200*2600mmCar body(W*H)5900*2200*2050mm(c


Details


Model

SY-S7

floor area (mm*mm)

6500*3500*3300

Size(L*W*H)

3100*1200*2600mm

Car body(W*H)

5900*2200*2050mm(customizable)

Electricity

380V/ 50Hz(customizable)

Main motor power

16kw(customizable)

Water consumption

80-170L/car

Water pressure

100 bar(customizable)

Speed

2 030sets/h

Rail way

6m

High pressure water system

plunger pump

Configurations:

1. Unique suspension system, no resistance rail.

2.Automatic water spraying and waxing system;

3.Automatic speed variable moving system;

4. Controlled by intellectualize computer;

5. Intelligent chemical mixing system.

6. Unique embedded automatic quick-drying system.

7.Car position indication system;

8. Self-check system failure.

9. One-button antifreeze system

10. Digital voice security alarm system.

Pics

Technical parameters

Control system

Installation dimensions

6.5m*3.5m*3m

PLC

Taida Taiwan

Track length

6m

The inverter

Taida Taiwan

Maximum wash size

5900*2100*2050m

The sensor

Bi DUK

The water pressure

100kg



The power supply

380v/50Hz



The host power

15kw



Comprehensive configuration

The transmission system

Chassis wash

Driving longitudinally

Belt drive

Diy maintenance

Free maintenance

Horizontal drive

NO

Numerical control system

NO

The drive motor

Asynchronous motor

Credit card system

optional

Detection system

ultrasonic

Bubble function

ratio of automatic

washing speed

20-30 cars/hour

Wash the car counting

water consumption

80-170 L/car

Breakdown self check

Standard car wash

80L/car

Function of water wax



LED lights hint



Fan

Three(5.5 kw)

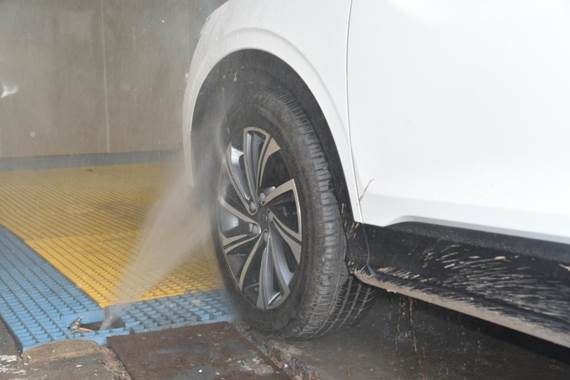

1. High pressure pre-wash for under chassis and wheels.

Equipped with a unique chassis and fan hub flush function, 100-150bar high pressure water can effectively remove dirt on chassis, body sides and wheels.

 DSC_0919

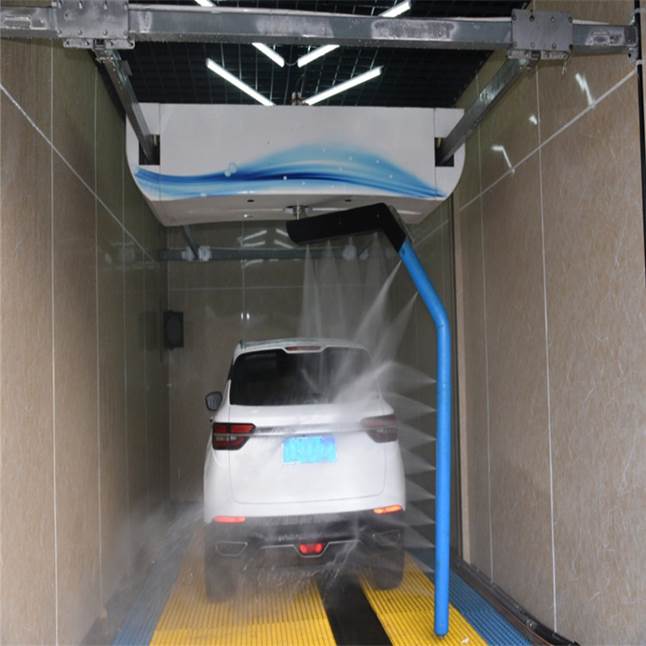

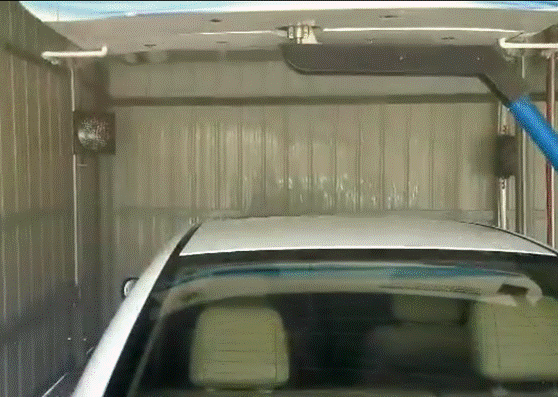

2.Smart 360 rotate arm, Flush car body 360° with high pressure water.

Complete 360° rotating within 30 seconds, water saving 50%, electricity saving 60%, automatic detect the length and width of the vehicle, up to 80-150bar high pressure water can easily remove the dirt.

IMG_257

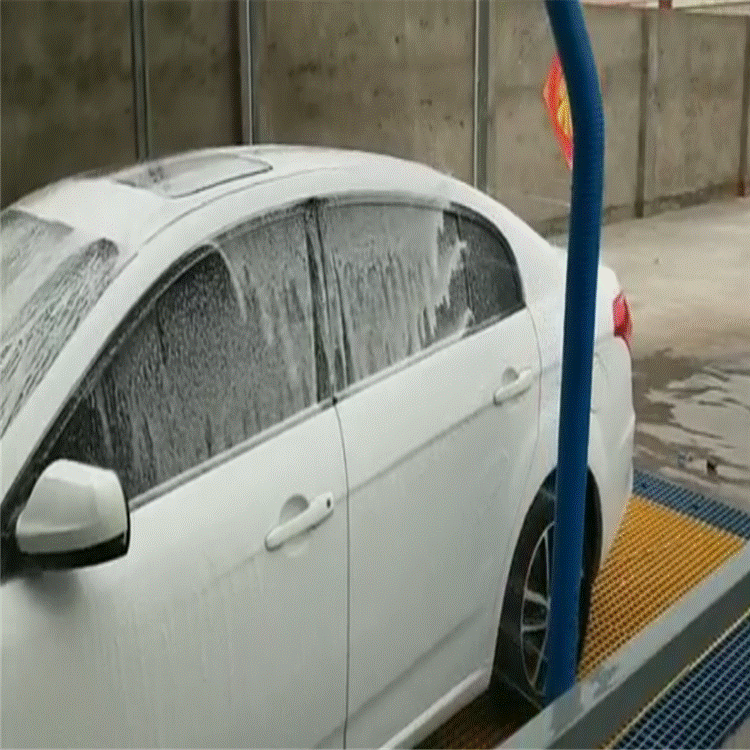

3.Smart 360 rotate arm, spray various washing chemicals with high-precision proportioning technology.

100% accurate measurement with adjustable ratio. only 20~50ml pre-soak comsumption for washing one car  through high precision chemical mixing system, save material and cost efficiently.

 IMG_258

IMG_259

4.Soft water with crystal wax coat

Soft water can make magic crystal coating color shampoo and wax completely adsorbed body surface, forming a multi-layered interaction strength protective film, car paint become more glorious and beautiful with durable paint protection.
     Crystal coating of wax can be generated in the paint surface layer polymer, the water softener fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.

 IMG_260

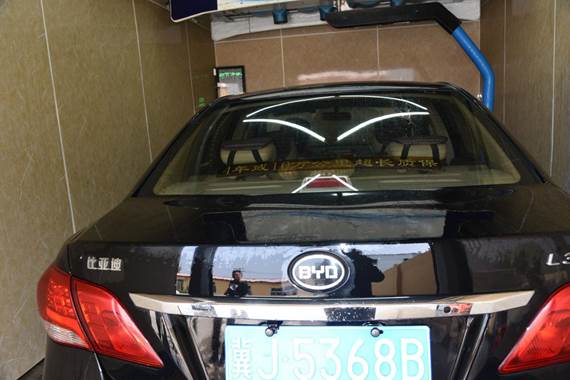

6.Unique embedded fast drying system.

  S7 is equipped with four 4kw built-in air dryers, which control the air flow through four cylindrical outlets to optimize the wind speed characteristics. When the wind reaches the car body, it maximizes. In fact, high-speed air flow is the best drying solution.

 DSC_0868



Name

Origin

Brand

Quantity

Photos

Remarks

Frequency converter

Taiwan

Delta

1

微信图片_20200920165412_副本


PLC

Taiwan

Delta

1

微信图片_20200920170043_副本


7-inch touchscreen

Shenzhen

Delta

1

微信图片_20200920170902_副本


LED indication

Nanjing

Xuan Yu

1

QQ截图20210413084601


Ultrasound

United States

Bonner

1

微信图片_20200920170421_副本


65A AC contactor

Zhejiang

Delicacy

1

微信图片_20200920170417_副本


9A AC AC contactor

Zhejiang

Delicacy

2

微信图片_20200920170409_副本


3P air switch

Zhejiang

Delicacy

3

微信图片_20200920170356_副本


1P air switch

Zhejiang

Delicacy

3

微信图片_20200920170350_副本


50W switching power supply

Zhejiang

Delicacy

1

微信图片_20200920170341_副本


AC intermediate relay

Zhejiang

Delicacy


微信图片_20200920171349_副本


DC intermediate relay

Zhejiang

Delicacy

1

微信图片_20200920171343_副本


0.37 kw AC motor



1

微信图片_20200921163605_副本


0.37 kw AC motor



1

微信图片_20200921163559_副本


1:20 Gear reducer



1

微信图片_20200921163619_副本


1:100 worm gear reducer



1

微信图片_20200921163635_副本


Proximity switch

Italy

Modi

5

微信图片_20200920172652_副本


Photoelectric switch

Beijing

Biduk

2

微信图片_20200920174648_副本


15 kMotor



1


Metering pumps

Beijing

Gretel

1


Foam pump

Taizhou

Leo

1

微信图片_20200920172611_副本


Solenoid valve





1

微信图片_20200920172618_副本




Solenoid valve





1

微信图片_20200920172635_副本


Rotary joint



Shanghai

customized

2

微信图片_20200920172638_副本


One-inch check valve

Shanghai

customized

1


Bearing



7


High pressure tube





Bearing

Shanghai

  Ren Ben

4


Pneumatic valves



1

微信图片_20200920173530_副本


Nozzle

Shanghai

customized

29


Pump

Germany

Pinfu

1


Stop limiter

Cangzhou

customized

10


Tropical

Linyi


50m


Remote control

Tianjin

customized

1

微信图片_20200920174138_副本


Fan

Guangzhou

William

3

微信图片_20200920174421_副本


Galvanized square tube

Tianjin


10

微信图片_20201005105413
