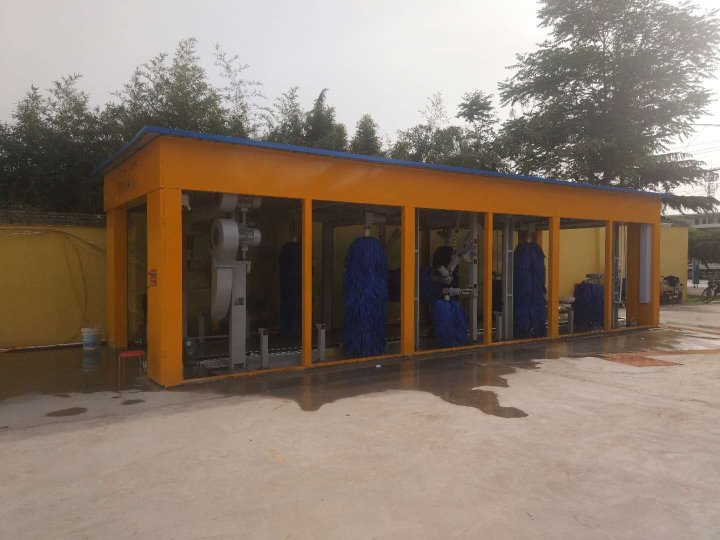

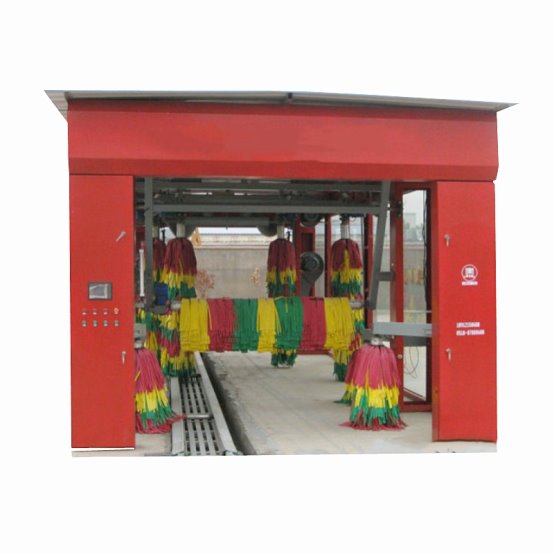

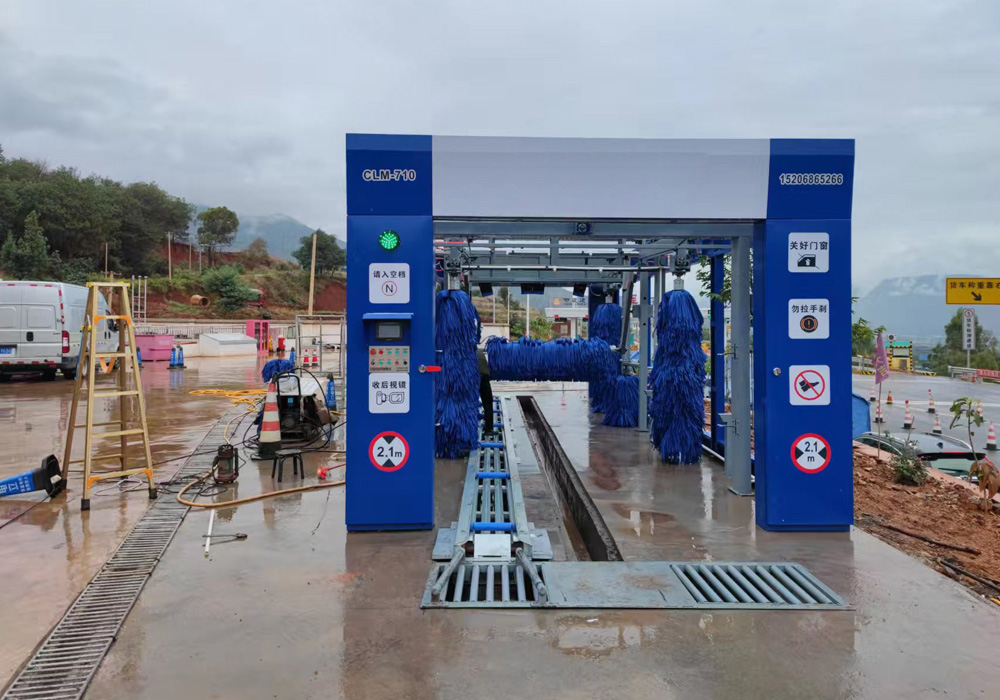

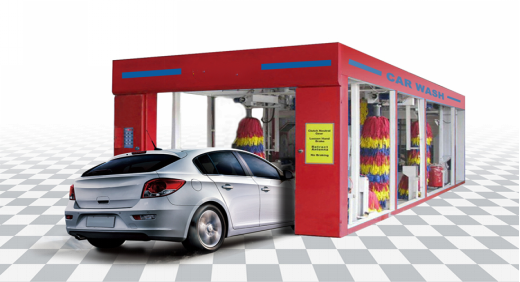

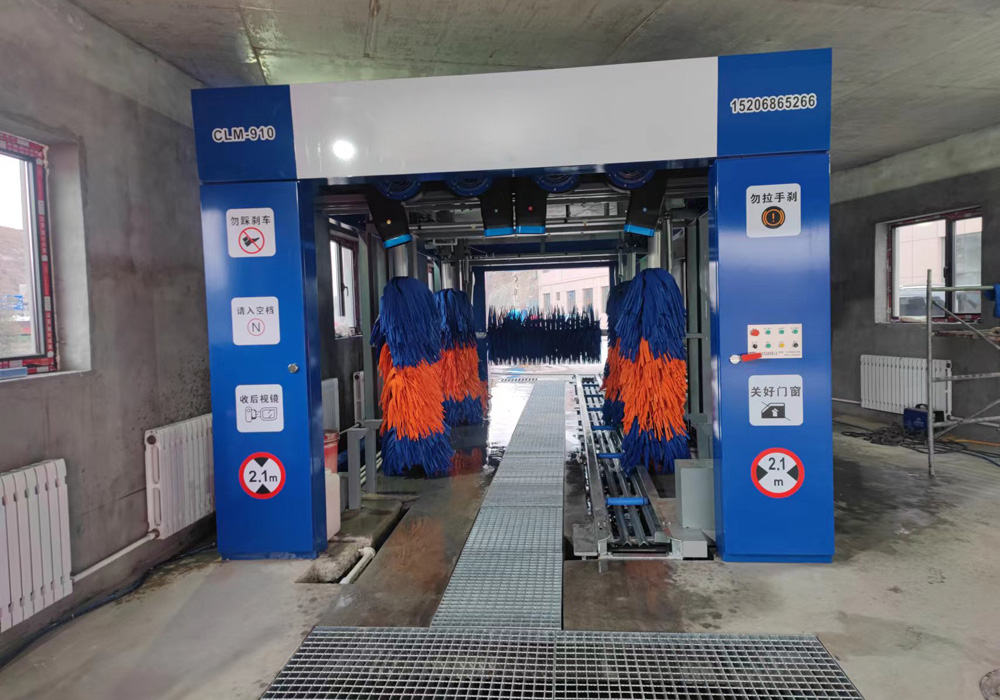

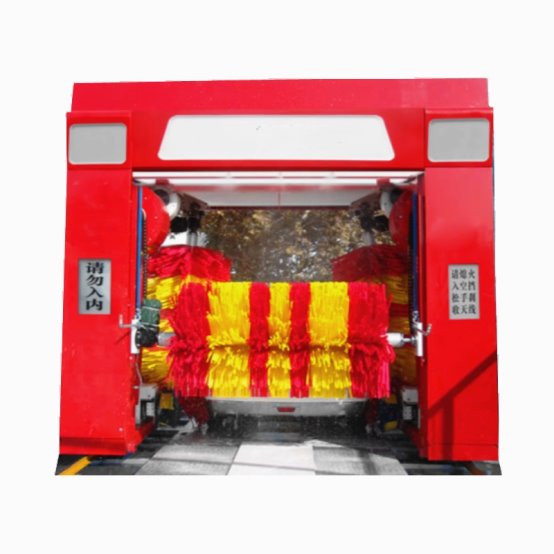

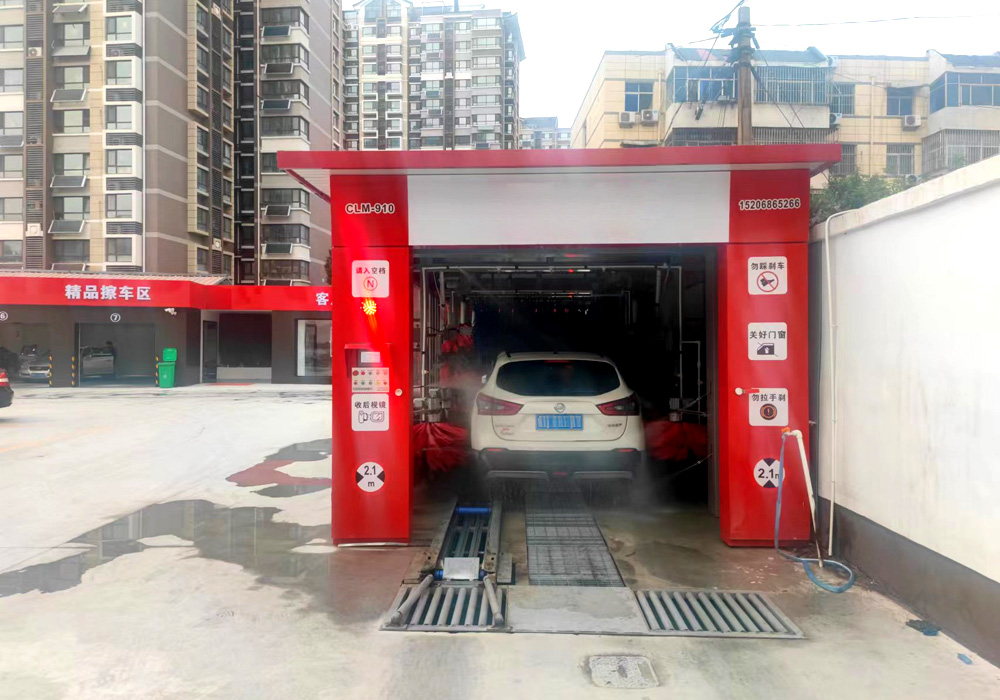

SY-T9
Model: | ZM-T9 |
Machine Size : | 11000*3800*3100MM (L*W*H) |
Washing Car Max Size: | 5500*2100*2100MM (L*W*H) |
operation | touch screen |
Wash for | Cars, mini bus, pickup,SUV,MVP |
Washing Speed: | 1-2 minutes/car |
100-130 L/car | |
Power Consumption: | 0.4 kwh/car(0.8kwh/car with fans) |
Power Supply: | 380 V/50/60 HZ, 3 phases |
Equipment Moving Speed: | 6 m/min |
Install Size: | 13000*4500*3500MM (L*W*H) |
Foundation Size: | |
Brush: | 1 top brush 4 long side brushes 4 side brushes |
Contouring dryer | Two stationary fans and two moving fans（The fan power22KW） |
37KW | |
Water supply | DN25mm/Water flow rate≥80L/min |
Air pressure | 0.6-0.9Mpa/Airflow rate≥0.1m³/min |
Shampoo consumption | 5ml/Car |
Water wax consumption | 5ml/Car |
Item | Model | T9 | |
Size | Machine size | 9400*3800*3100mm | |
Car Max Size | 5500*2100*2100MM | ||
Cost consumption | Total power | 37kw | |
Maximum operating power | 28kw | ||
Various components power | Top brush 0.55KW*1 | ||
Side brush 0.55KW*4 | |||
Small brush 0.37KW*4 | |||
Conveyor | |||
Traveling 1.5KW*1 | |||
Water pump 3KW*1 | |||
suction pump 1.1kw*2 | |||
foam pump 0.4kw*1 | |||
water wax pump 0.4KW*1 | |||
Air compressor 3kw*1 | |||
Dryer 5.5KW*4 | |||
Water consumption | 125L | ||
Wash | Washable car | Car, jeep, coach below 9seats | |
Liquid using | shampoo | ||
wax | |||
Washing time | 60sets/hour |
Configuration | |||||||
NO. | Name | Brand | Model | Quantity | Unit | Remarks | |
1 | PLC | Siemens | SIMATICS7-200 | 1 | set | ||
2 | Power | Schneider, France | ABL2REM24045H | 1 | set | ||
3 | Photoelectric switch | Bonner, USA | S18SN6R | 18 | set | ||
4 | Proximity switch | Beckhoff, Germany | DEPPERL+FUCHS | 14 | set | ||
5 | AC contactor | Zhejiang Zhengtai | CJX2-1801 | 15 | set | ||
6 | transformer | Zhejiang Zhengtai | NDK-150 | 1 | set | ||
7 | breaker | Zhejiang Zhengtai | DZ47-6D20 | 12 | set | ||
8 | Intermediate relay | Zhejiang Zhengtai | MYZ-AC220V | Several | set | ||
9 | Button | Zhejiang Zhengtai | ZBZ-BA3C | 8 | set | ||
10 | Solenoid valve | Adek (Shanghai) | 4V210-08 | 7 | set | ||
11 | Cylinder | Adek (Shanghai) | SU40X300 | 11 | set | ||
12 | Brush piece | Taiwan | High quality foam EVA | Several | sheet | ||
13 | Waterproof motor | Zhejiang Defan | Customized | 10 | set | ||
14 | Stainless steel reducer | Zhejiang Tianju | Customized | 10 | set | ||
15 | Air compressor | Shanghai Jaguar | Customized | 1 | set | ||
16 | Cable | Qingdao cable | H05W-F | Several | meter | ||
17 | Air dryer | Weilian, Guangdong | Customized | 4 | set | ||
18 | High pressure pump | Zhejiang Jiedi | CDLF4-13 | 1 | set | ||
