SY-T11
Model | ZM-T11 |
Machine Size | 13000*3800*3100MM (L*W*H) |
Washing Car Size | 5500*2100*2100MM (L*W*H) |
Wash for | Cars, mini bus, pickup,SUV,MVP |
Washing Speed | 1-2 minutes/car |
Water Consumption | 130 L/car |
Power Consumption | 0.42 kwh/car(0.84kwh/car with fans) |
Power Supply | 380 V, 50/60 HZ, 3 phases |
Equipment Moving Speed | 6 m/min |
Install Size | 15500*4500*3500MM (L*W*H) |
Foundation Size | 15500*4500*3500MM (L*W*H) |

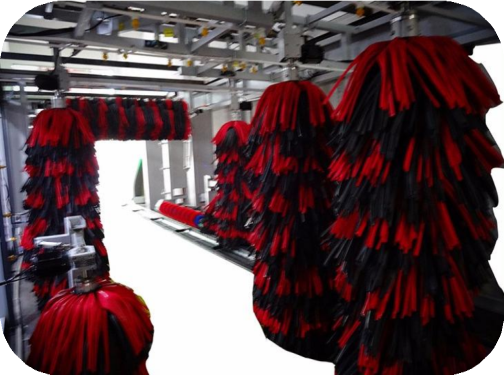

Brush | One top brush Four side brushes Four small side brushes Two fabric brushes after blower |
Contouring dryer | 2 top blowers,2 side blowers , total 22 KW |
Total Power | 38KW |
Water supply | DN25mm/Water flow rate≥80L/min |
Air pressure | 0.75-0.9Mpa/Airflow rate≥0.1m³/min |
Shampoo consumption | 5ml/Car |
Water wax consumption | 5ml/Car |
Features:
-Professional wash for Cars, jeeps and all kinds of minibus
-Adopting advance technology and full module design, which can be combined to more than ten different functions for different needs
-The main electrical components are imported from famous foreign factory, which can ensure safe and reliable
-Unique fault self-testing system
-Adopting the most advanced wash brushes which can wash completely
-Touch panel control screen is easy to operate
-Adopting the advanced high pressure system
-High pressure pre-wash, agent wash, brush wash, spraying wax, drying and polishing in one turn
Item | Model | ZM-T12 | ZM-T11 | |
Size | Machine size | 14300*3800*3100mm | 13000*3800*3100mm | |
Car Max Size | 5500*2100*2100MM | 5500*2100*2100MM | ||
Cost consumption | Total power | 39kw | 38kw | |
Maximum operating power | 28kw | 28kw | ||
Various components power | Top brush 0.55KW*2 | Top brush 0.55KW*1 | ||
Side brush 0.55KW*6 | Side brush 0.55KW*6 | |||
Small brush 0.37KW*4 | Small brush 0.37KW*4 | |||
Conveyor | Conveyor | |||
Traveling 1.5KW*1 | Traveling 1.5KW*1 | |||
Water pump 3KW*1 | Water pump 3KW*1 | |||
suction pump 1.1kw*2 | suction pump 1.1kw*2 | |||
foam pump 0.4kw*1 | foam pump 0.4kw*1 | |||
water wax pump 0.4KW*1 | water wax pump 0.4KW*1 | |||
Air compressor 3kw*1 | Air compressor 3kw*1 | |||
Dryer 5.5KW*4 | Dryer 5.5KW*4 | |||
Water consumption | 125L | 125L | ||
Wash | Washable car | Car, jeep, coach below 9seats | Car, jeep, coach below 9seats | |
Liquid using | shampoo | shampoo | ||
wax | wax | |||
Washing time | 60sets/hour | 60sets/hour |
